Stop Collars
Stop Collars

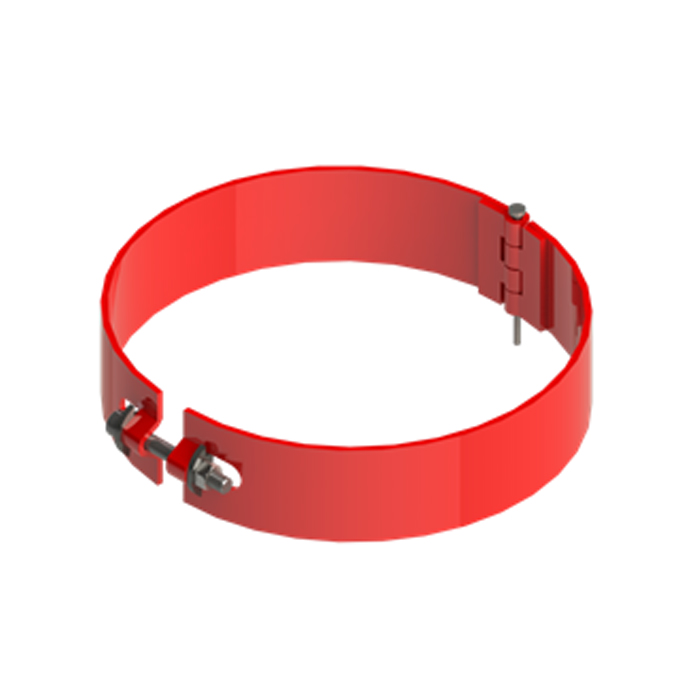

HINGED BOLTED STOP COLLAR (VE-51)
Hinged Bolted Stop Collars are combining in two pieces and hinged at one end. On other end, a single Bolt is used to tighten the Collar to the casing.
Available Size: 4-1/2″ to 20″.
(Any special sizes or combination can available on request).
HINGED SPIRAL NAIL STOP COLLAR (VE-53)
Hinged Spiral Nail Stop Collar is combining in two pieces and hinged at two-end. The width of these stop collars is 63mm. This collar can be used in both upset and non-upset casing to provide maximum clearance during rotation. Locking is by way of a groove in the middle into which a spiral nail is driven for improved grip on the casing.
Available Size: 4-1/2″ to 20″.
(Any special sizes or combination can available on request).
HINGED STOP COLLAR WITH SET SCREW (VE-54)
Hinged Set Screw Stop Collars are combining in two pieces and hinged at two-end. The gripping force is applied by one row of Set Screw. This Collar is hinged with a row of setscrews that easily position and firmly grip the Collar on to the casing.
Available Size: 4-1/2″ to 20″.
(Any special sizes or combination can available on request).

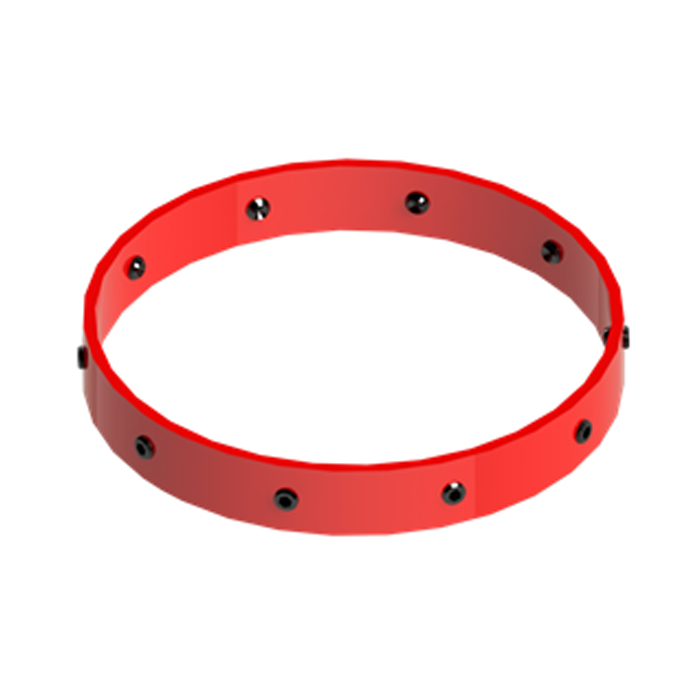

SLIP ON WELDED STOP COLLAR WITH SET SCREW (VE-55)
Slip on Stop Collar with Set Screw is single piece Collar. The gripping force is applied by one row of setscrew. The outside ends of the collar just chamfered to remove sharp edges and the gripping screw are placed on 1/3 part of the collar. It’s easy to install.
Available Size: 4-1/2″ to 20″.
(Any special sizes or combination can available on request).

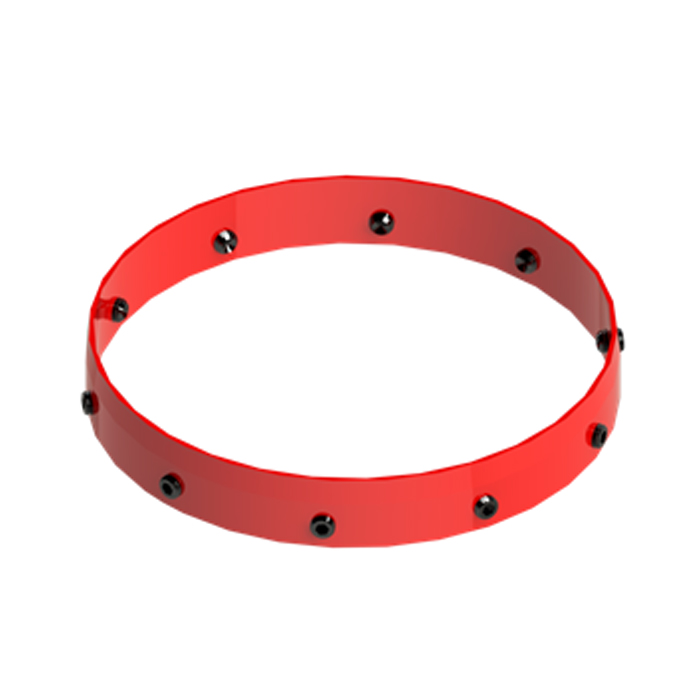

SLIP ON STOP COLLAR WITH SET SCREW SINGLE SIDE BEVELED (VE-56)
Slip on Stop Collar with Set Screw Single Side Beveled is single piece collar. The outside ends of these Collars are beveled from one side which helps to hold the Centralizer and avoid the ends to hit the bows when Centralizers are placed over them.
Available Size: 4-1/2″ to 20″.
(Any special sizes or combination can available on request).
SLIP ON STOP COLLAR WITH DOUBLE ROW SET SCREW SINGLE SIDE BEVELED (VE-56-DSS)
Slip on Stop Collar with Double row Set Screw Single Side Beveled is Heavy Duty single piece collar. The outside ends of these Collars are beveled from one side which helps to hold the Centralizer and avoid the ends to hit the bows when Centralizers are placed over them. Its normally used for higher holding force.
Available Size: 4-1/2″ to 20″.
(Any special sizes or combination can available on request).
