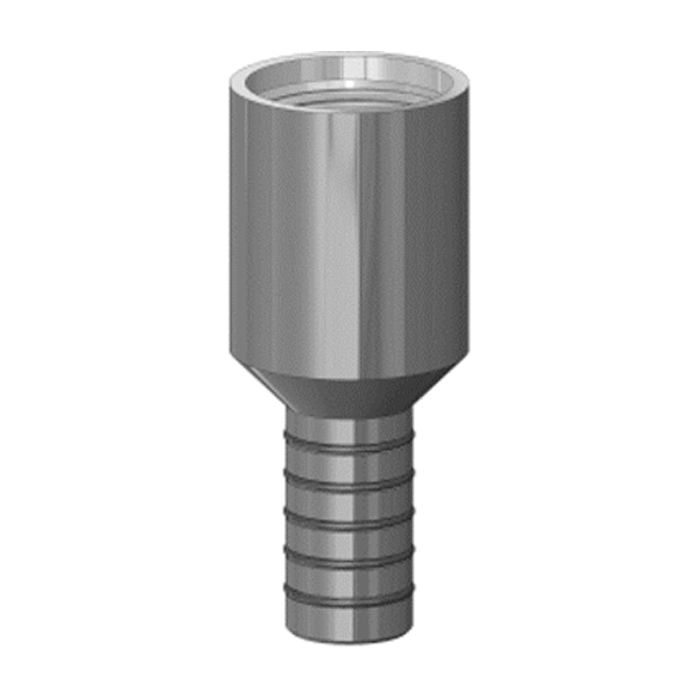

Stab In Stinger Sub
Stab In Stinger Sub
Description & Features
- Stung into the float Equipment by lowering directly into the receptacle.
- No Rotating is required.
- Stinger is removed by picking up on the drill string.
- Manufactured to connect to drill pipe size and thread.
Size And Thread Availability
- 2-7/8”- 4-1/2 IF.
- 5-1/2”- 6-5/8” FH AND OTHERS.
Technical Parameter
- Pressure Rating: up to 10,000 psi (maximum).
- Temperature rating: up to 400°F
Material
- L-80, P110, 13% Cr 1 Moly, INCONEL-825, AISI 4140 80/110 KSI
Elastomer
- Nitrile, Viton, HNBR, Aflas
| TECH UNIT No. | 039 |
|---|
