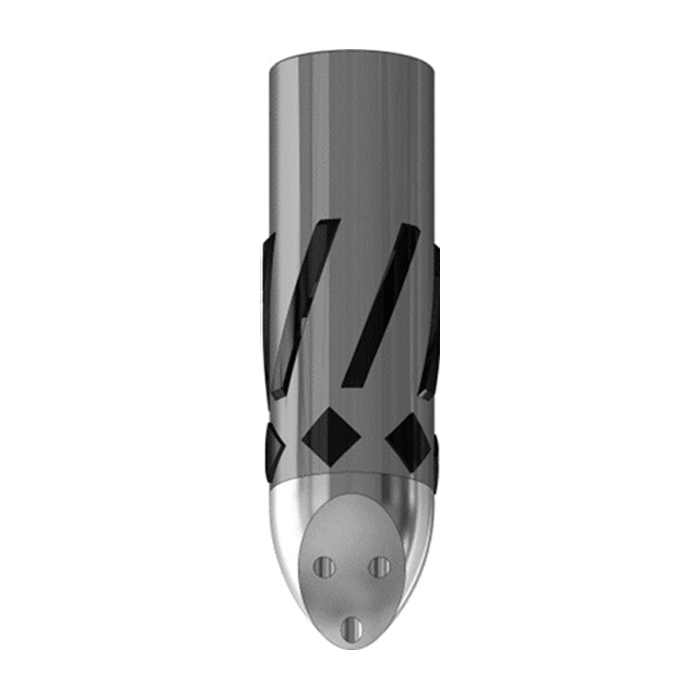

Reamer Shoe Without Carbide Button
Reamer Shoe Without Carbide Button
Description & Features
- Designed for Problematic wells where reciprocation and/or rotation of the casing is anticipated to ream the hole and land the Casing to total depth (TD)
- Features the valve API III-C rating.
- Standard features include aluminum eccentric nose and down-jets.
- Blade are coated with cutting structure is tungsten carbide with height Customized for hole size.
Technical Parameter
- Pressure Rating: up to 7,500 psi (maximum).
- Temperature rating: up to 400°F
Material
- L-80, P110, 13% Cr 1 Moly, INCONEL-825, AISI 4140 80/110 KSI
Elastomer
- Nitrile, Viton, HNBR, Aflas
Size
- 3-1/2 in to 20.0 in
| TECH UNIT No. | 036 |
|---|
