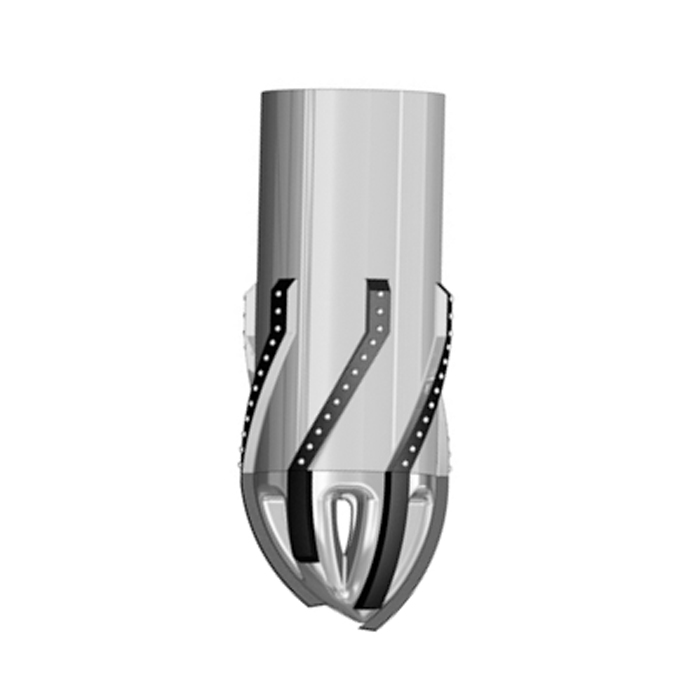

Reamer Shoe With Carbide Button
Reamer Shoe With Carbide Button
The Reamer Shoe has been specifically designed to aid with the installation of any Casing, Liner or Screen application, where the operator has concerns over potentially difficult wellbore conditions such as swelling shale’s, ledges and washed-out areas within the wellbore.
Features
- Casing friendly tungsten carbide cutting structure
- Anti-aggressive left hand blades minimize torque
- 360° cutting structure facilitates reaming past obstructions with or without rotation
- Well-bore seeking eccentric guide nose negotiates
- Troublesome formations
- Aluminium guide nose to aid drill out without compromising nose strength
- Flow ports offering 360° flow area
- Slick body design helps reduce ECD
Options
- Single & double valve system available
- Autofill system available
- Concentric or other nose options available
- All API and premium connections available
- All material casing grades available
Technical Parameter
- Pressure Rating: up to 7,500 psi (maximum).
- Temperature rating: up to 400°F
Material
- L-80, P110, 13% Cr 1 Moly, INCONEL-825, AISI 4140 80/110 KSI
Elastomer
- Nitrile, Viton, HNBR, Aflas
Size
- 3-1/2 in to 20.0 in
| TECH UNIT No. | 035 |
|---|
