| TECH UNIT No. | 068 |
|---|---|
| MODEL | VE-PP-A |
Seal Bore Extension

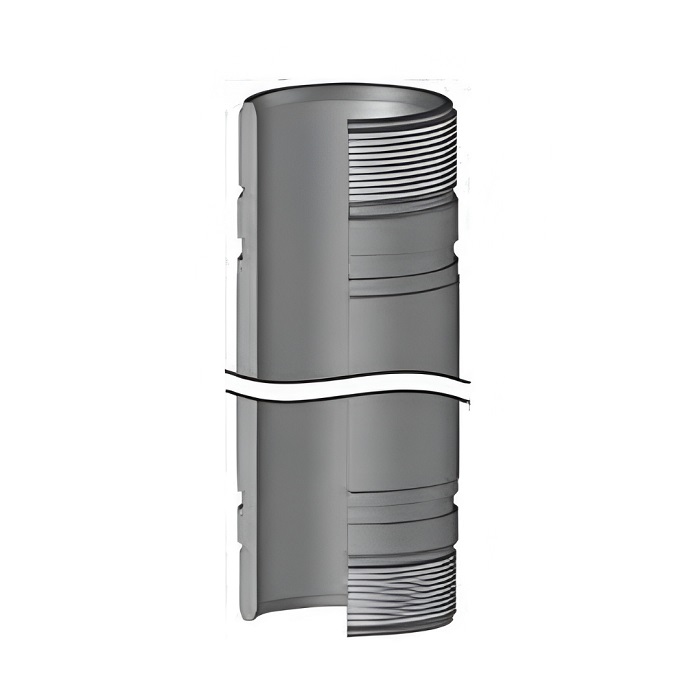

The Seal Bore Extension is designed for applications requiring floating seals to accommodate tubing contractions. This packer accessory provides a continuous seal bore and is offered in lengths of up to 20 feet.

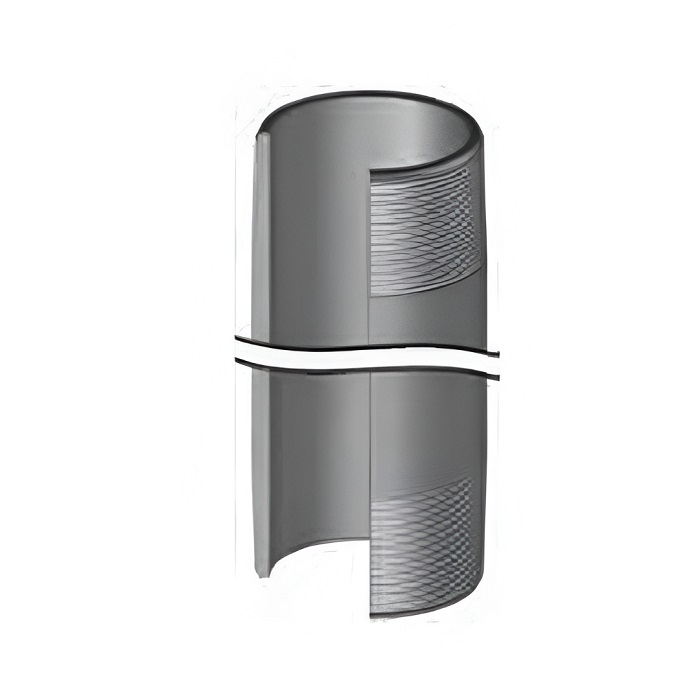

Mill – Out Extension
The Seal Bore Extension is designed for applications requiring floating seals to accommodate tubing contractions. This packer accessory provides a continuous seal bore and is offered in lengths of up to 20 feet.
Seal Bore to Mill-Out Extension Coupling

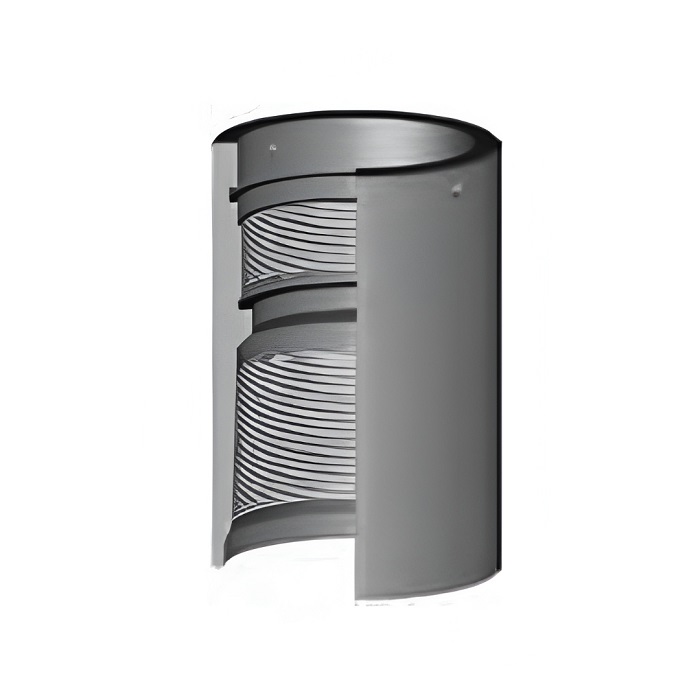

The Seal Bore to Mill-Out Coupling is used to join mill-out extensions with seal bore extensions.

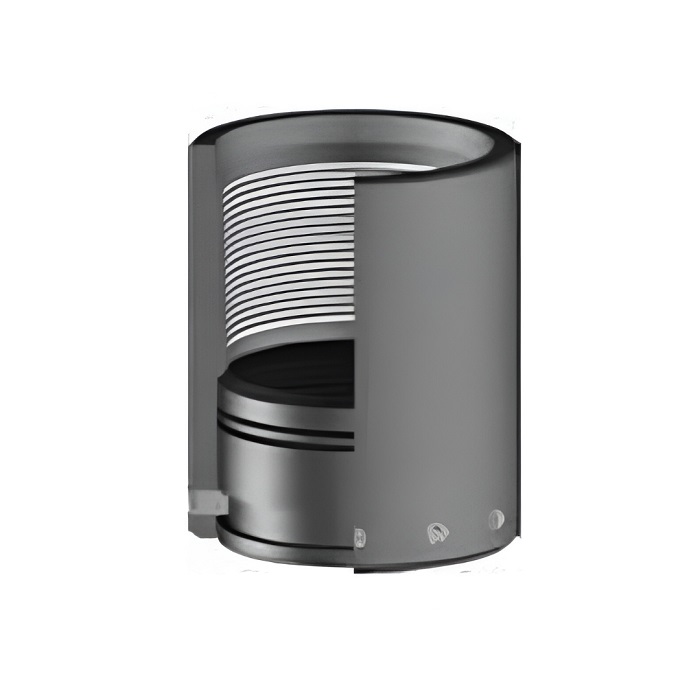

Pump out Plug
The Seal Bore Extension is designed for applications requiring floating seals to accommodate tubing contractions. This packer accessory provides a continuous seal bore and is offered in lengths of up to 20 feet.

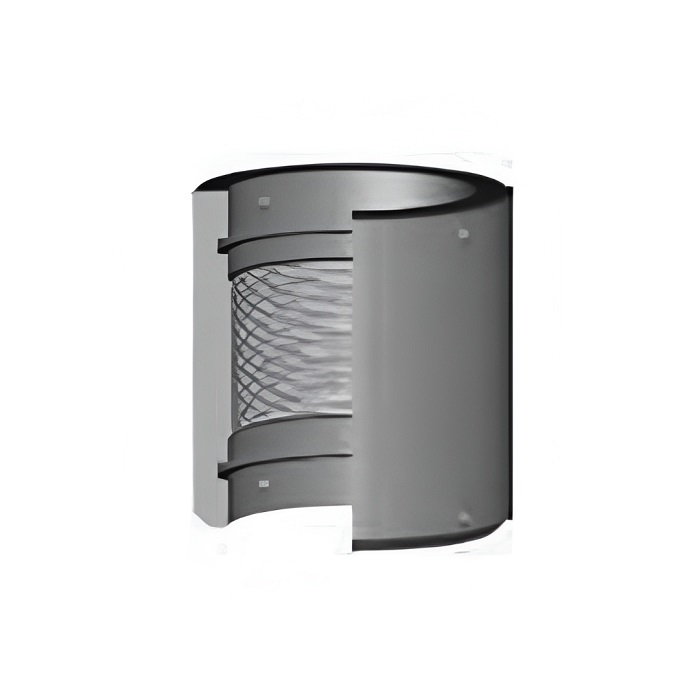

Concentric Coupling
The Concentric Bottom is used to attach a seal bore extension to a packer.
Mill - Out Bottom

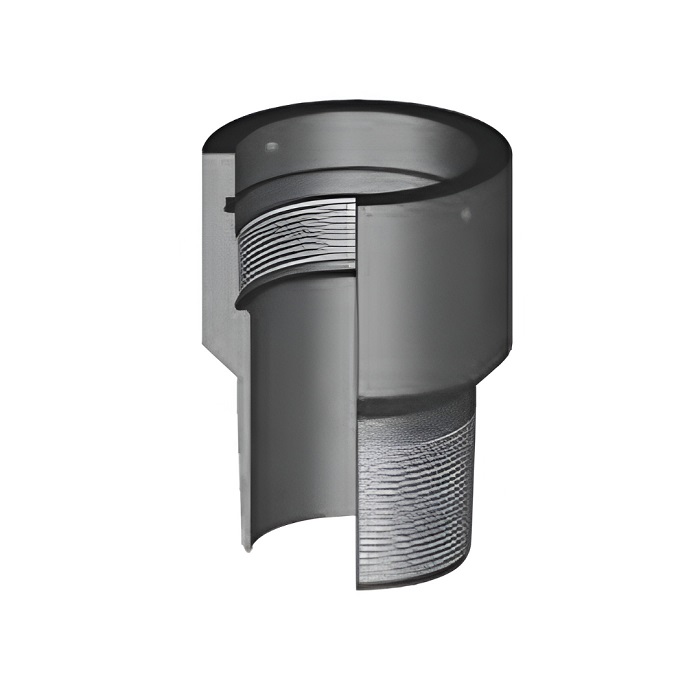

A Mill-Out Bottom is used to connect a mill-out extension to a packer.
Bottom Plug

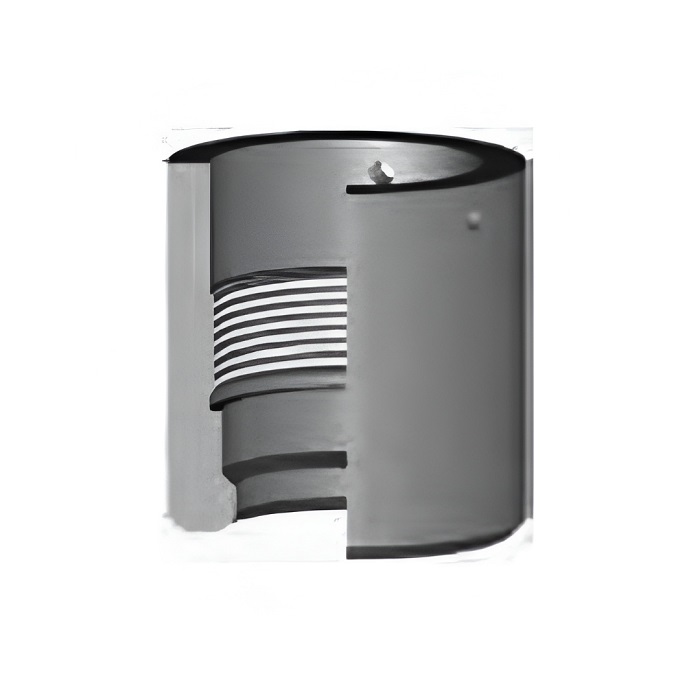

When a Bottom plug is run below the packer, the Bottom plug allows a packer to serve as a bridge plug holding pressure from above and below.
Wire Line Entry Guide

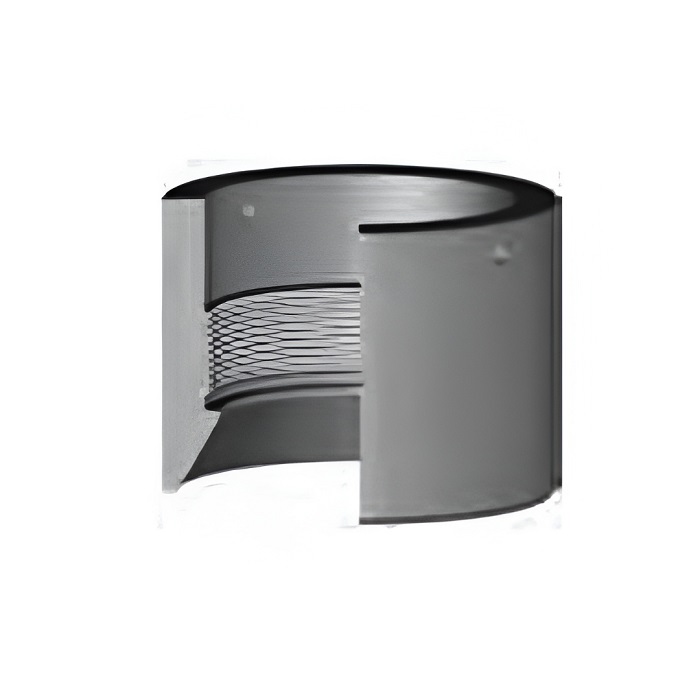

A Wireline Re-Entry Bottom is used as the packer bottom when an extension below a packer is not required

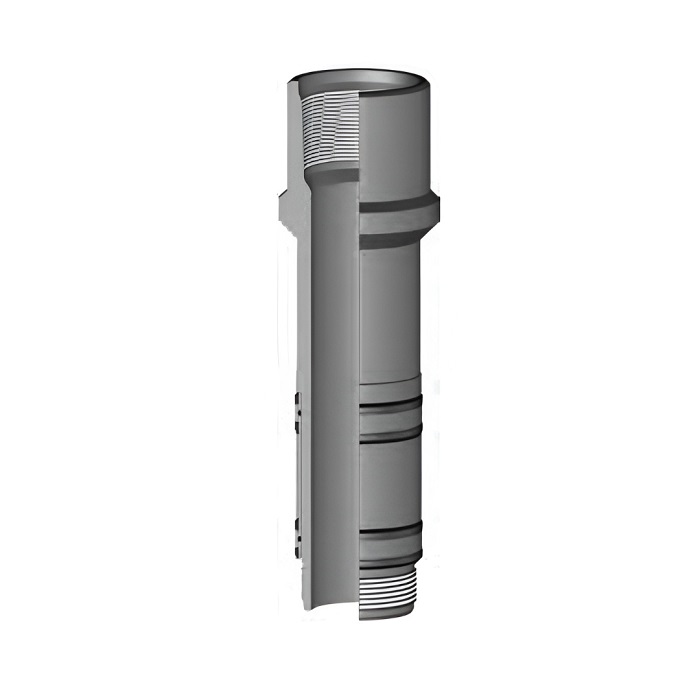

Locator Seal Assembly
The Locator Seal Assembly is used in applications requiring floating seals. Once landed, the seal locator prevents downward tubing movement while allowing the seal to travel with tubing contraction

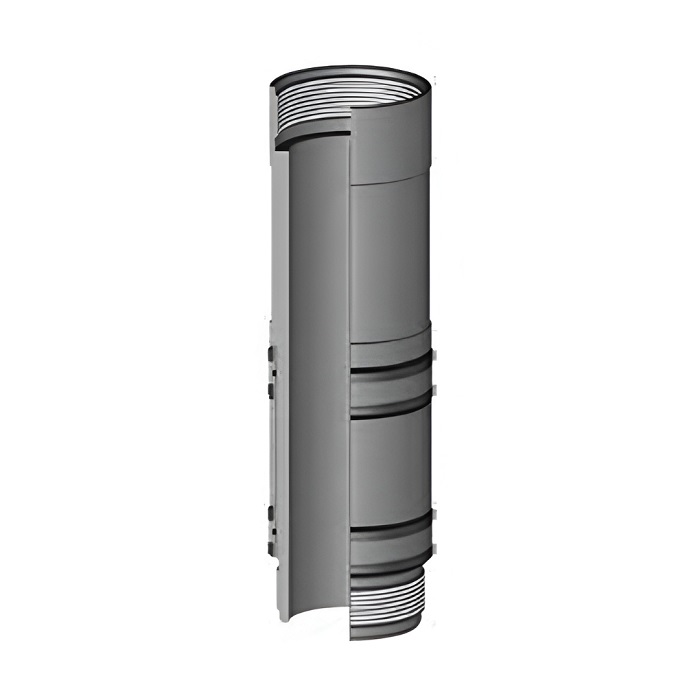

Seal Unit –Bonded Type
The standard Seal Unit is supplied with bonded nitrile rings and a 12-inch make-up length. Units are available in various lengths and can be ordered with severe-service seal rings for high-temperature and corrosive environments
Half mule Shoe Guide

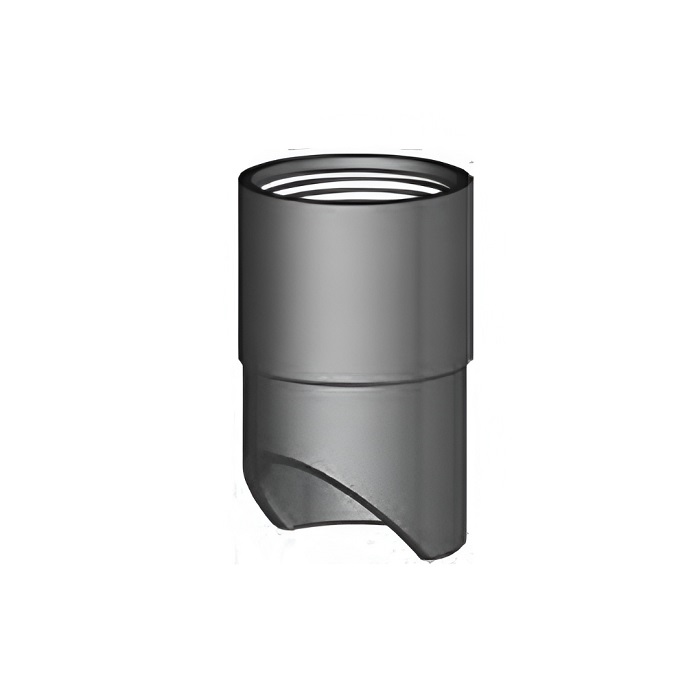

The Half Mule Shoe Guide is standard with the Seal Assembly and provides easy entry into the packer bore

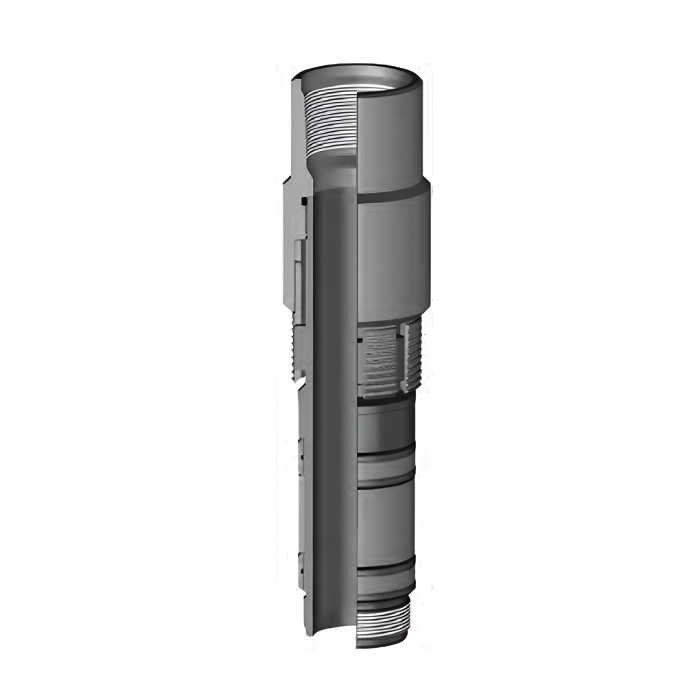

Anchor Latch Seal Assembly
The Anchor Latch Seal Assembly is used in applications where floating seals are not required. This assembly allows the tubing string to be run in either tension or compression. Once set down, the anchor latches into the packer and can be released with eight to ten right-hand turns

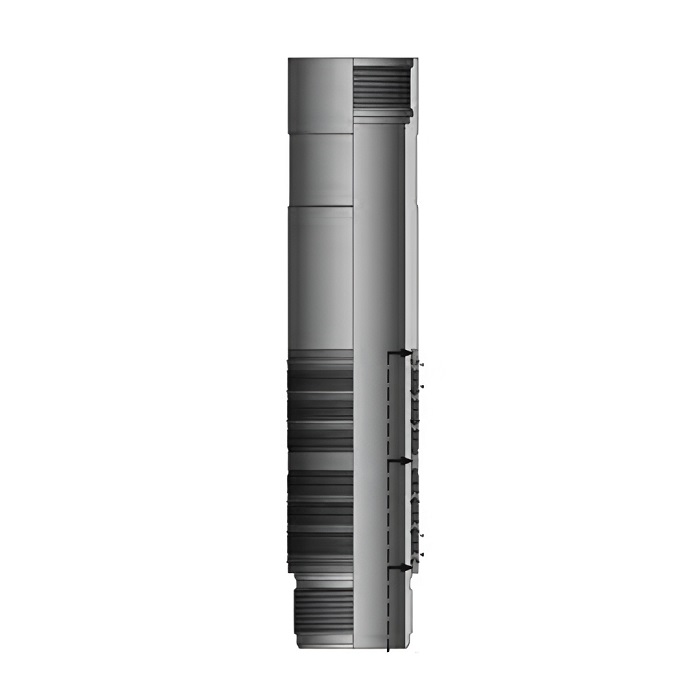

Seal Unit – Chevron Seal
Chevron Seal Unit is supplied with all elastomers grade and a 12-inch make-up length. Units are available in various lengths and can be ordered with severe-service seal rings for high-temperature and corrosive environments.

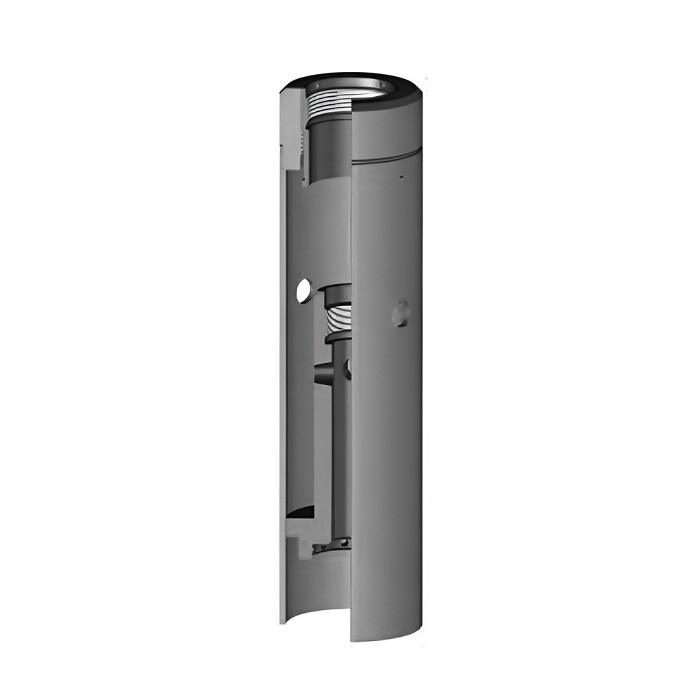

Wire Line Adapter Kit (WLAK)
This setting equipment may also be used with hydraulic setting tools configured similarly to the standard setting tool. It is designed with an adjustable outer sleeve to ensure proper make-up to the packer.
