WIRE BRISTLE SCRATCHER (VE-61)
Successful primary cementing requires centering of the casing, casing movement, and a properly conditioned hole. Our Scratchers condition the hole by removing mud cake from the face of formation to ensure a good cementing bound and to prevent channeling. They also contribute to the even distribution of the cement slurry and the achievement of a complete fill.
- Their hinged design makes them easy to install.
- High strength & tempered wire.
- Improve Mud removal.
- Improve Cement placement, creating a more uniform wall thickness.
Available Size: 4-1/2” to 13-3/8“.
(Any special sizes or combination can available on request).
CROSS COUPLING CABLE PROTECTOR (VE-66)
Cross Coupling Cable Protectors are manufactured from high integrity carbon steel ASTM A216 grade WCB to NACE MR-01-75/ latest edition. Protectors can also be made in a range of other materials including stainless steel and Cast steels. All Cast Cross Coupling Cable Protectors to protect and support ESP cable, control lines, umbilical lines or encapsulated bundles and injection lines in the well bore for wells completed with artificial lift.
- Improve cable guard (standoff) to minimize potential for damage due to crushing.
- The protector is designed to withstand axial load of 30 ton and lateral load 20 ton without on the production tubing.
Available Size: 2-3/8” to 7“.
(Any special sizes or combination can available on request).

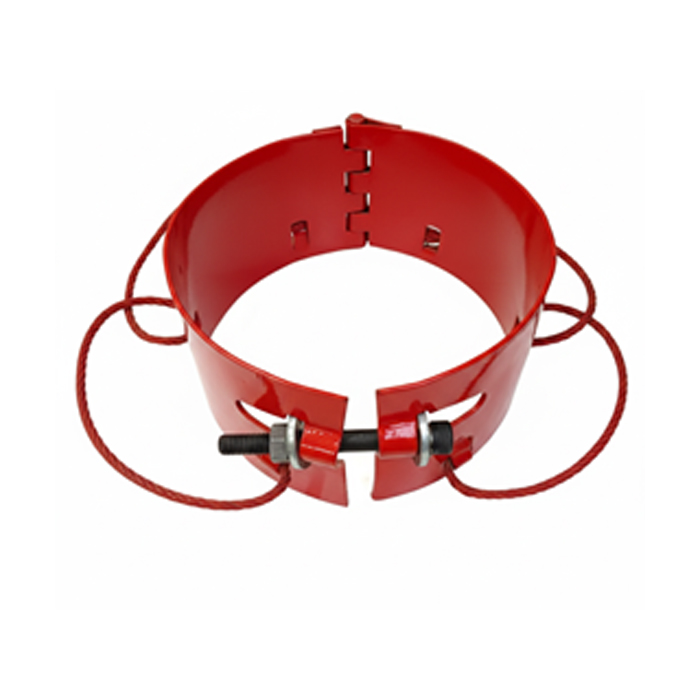

WELLBORE WIPER (VE-71)
Wellbore Wiper is a hinged collar featuring high strength steel wire cables looped in overlapping manner to produce an uninterrupted wiping action during pipe rotation.
These wipers clean the well bore efficiently by permitting removed filter cake to pass, thereby providing excellent reinforcement to the cement column especially under close spacing.
Available Size: 4-1/2” to 20“.
(Any special sizes or combination can available on request).

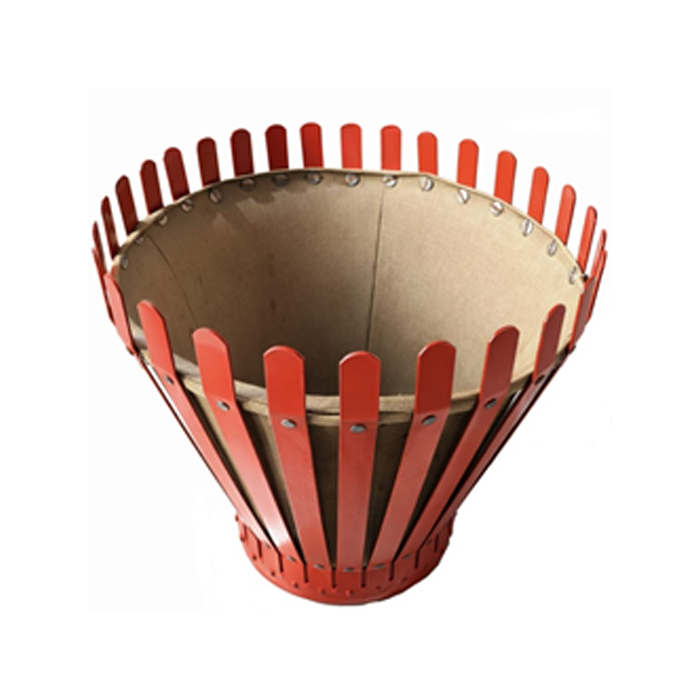

SLIP ON CANVAS CEMENT BASKET (VE-83)
Slip on Canvas Cement Basket is like an open umbrella. Its outside are steel flakes welded on steel slip on ring and riveted with high strength canvas on other end. Canvas used its inside for holding all steel flakes. It’s basically used in larger holes.
Available Size: 4-1/2” to 20“.
(Any special sizes or combination can available on request).

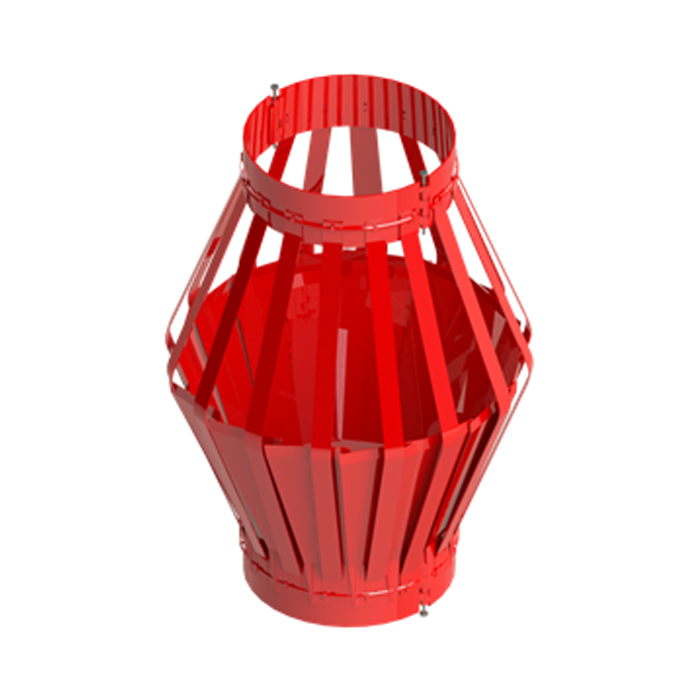

HINGE TYPE CEMENT BASKET (VE-81)
- Commonly used in situations where porous or weak formations require help in supporting a cement column.
- Designed with Flexible Bow Springs, heat-treated under controlled conditions for maximum strength and uniformity are welded to hinged collars and overlapping metal fins for flexibility and strength to support long columns of cement during primary cementing operations.
- Its design allows cement to flow in an upward direction, yet helps to prevent it from falling downward.
- Basket is easily installed by sliding it over the pin end of a casing joint, prior to make-up of the joint.
Available Size: 4-1/2” to 20“.
(Any special sizes or combination can available on request).
These are generally shipped in half assembled condition for economy in shipping and storage costs.

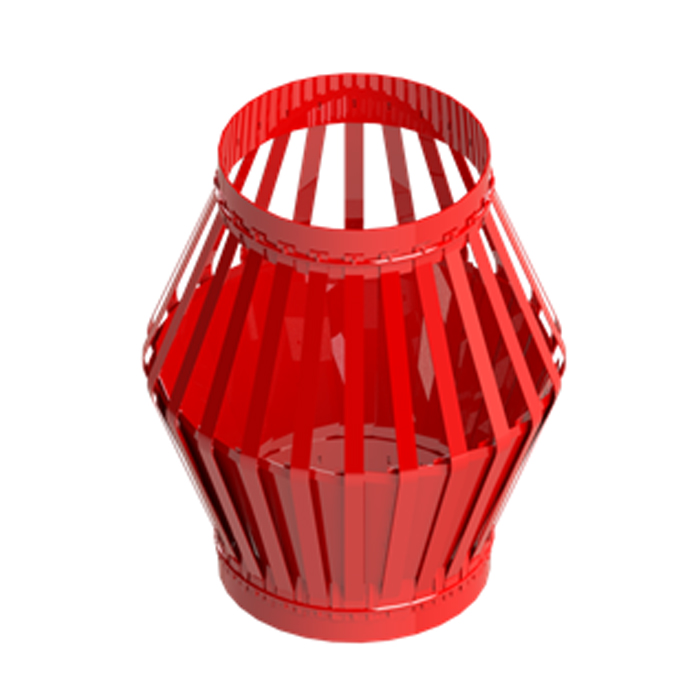

SLIP ON TYPE CEMENT BASKET (VE-82)
- Simple structure, easy to handle, defend leak effectively.
- The circulation is not restricted whenever in the process of running casing, during lifting and lowering or in the half way.
- Not infected by the temperature and causticity liquid.
- Can be used with relevant small casing.
- Its design allows cement to flow in an upward direction, yet helps to prevent it from falling downward.
Available Size: 4-1/2″ to 20″.
(Any special sizes or combination can available on request).
These are generally shipped in half assembled condition.
