NON WELDED SPRING BOW CENTRALIZER (VE-01)
- Super Strengthen alloy steel.
- Starting and restoring force confirm to API standard.
- Designed for High Restoring Force and Low Starting & Running Force for centralizing the casing pipe in Vertical, Horizontal and Deviated well.
- Extended profile bows for prevent them from hitting against casing collars.
- Easy for installation.
- Available Size: 4-1/2" to 20"
- Any special sizes or combination can available on request).These are generally shipped in half assembled condition for economy in shipping and storage costs.

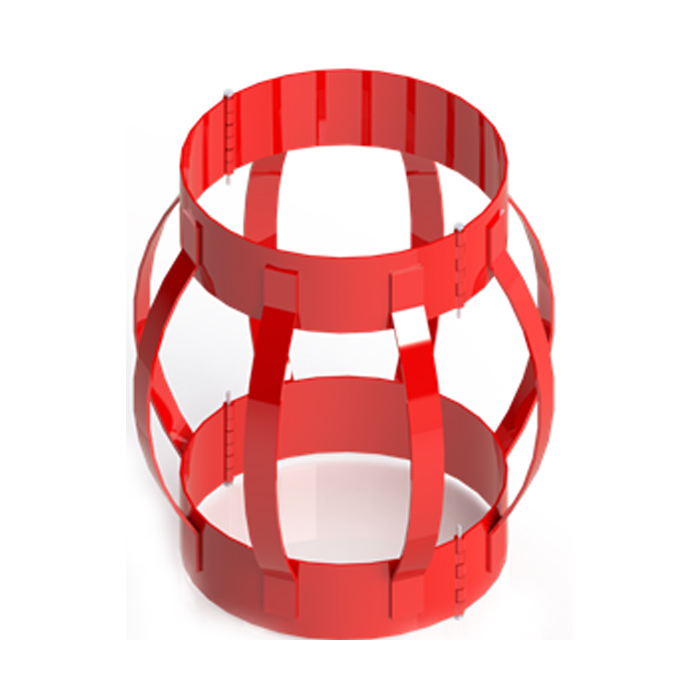

HINGE TYPE WELDED SPRING BOW CENTRALIZER (VE-02)
- More Restoring force as compare to Non Welded Spring Bow Centralizer.
- Centralizers spring bow have strongly welded to the End Collar under required temperature and condition with extra low Hydrogen coated Electrodes.
- Integral hinge folded on the inside stay intact even under extreme stress.
- End Collars are designed with a Reinforcing Rib stamped into the End Collar to give maximum structural toughness.
- Available Size: 4-1/2" to 20"
- Any special sizes or combination can available on request).These are generally shipped in half assembled condition for economy in shipping and storage costs.
SLIP ON WELDED SPRING BOW CENTRALIZER (VE-03)
- Slip-on centralizers are manufactured with solid end rings that can be easily slipped on the casing OD during installation.
- Operational and general design features are the same as Hinged Welded Bow Spring Centralizers.
- Available Size: 4-1/2" to 20"
- (Any special sizes or combination can available on request). These are generally shipped in assembled condition.
SLIP ON WELDED SPRING BOW CENTRALIZER WITH SET SCREW (VE-04)
- Slip-on centralizers are manufactured with solid end rings that can be easily slipped on the casing OD during installation.
- The centralizer consists of straight bow springs that are welded onto the slip on end ring with evenly spaced integral set screws for greater holding force; therefore a stop collar or coupling is not required.
- Available Size: 4-1/2" to 20"
- (Any special sizes or combination can available on request). These are generally shipped in assembled condition.

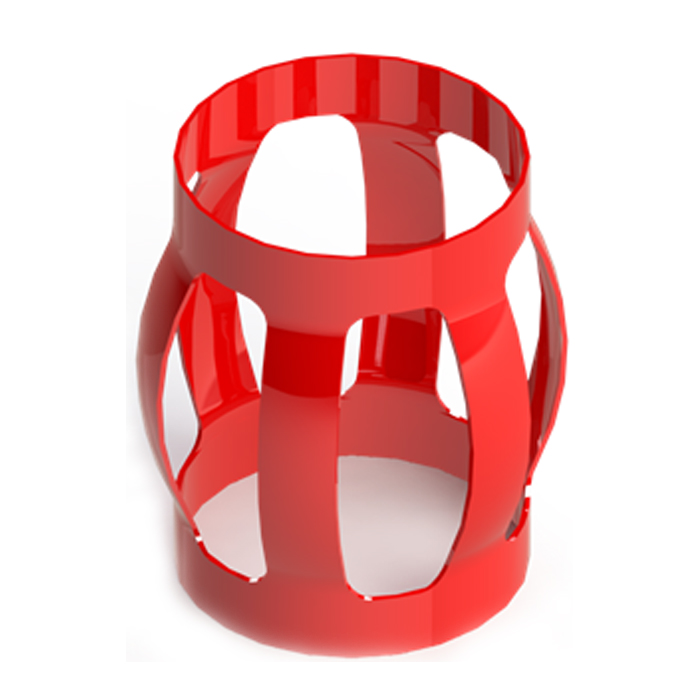

SINGLE PIECE CENTRALIZER (VE-05)
- The SINGLE PIECE CENTRALIZER is newly designed integrated steel flexible Centralizer used to centralize casing during the cementing stage of oil wells. Fully integrated (SLIP-ON) centralizers are manufactured in any diameter and as per customer requirements.
- The blades, top and bottoms rings are made of one piece to ensure the centralizer’s integrity during rig operations.
- The specifications comply with API Spec 10D for starting compression, running downhole and expansion forces
- These centralizers offer high fatigue strength for axial forces and radial side loads on bows during tubular rotation
- More flexibility as comparison to other spring bow centralizer
PERFORMANCE
- More flexibility as comparison to other spring bow Centralizer.
- Higher Stand Off.
- Zero Starting and Running Forces.
- Restoring forces greater than other spring bow centralizer.
- Low friction factor.
APPLICATIONS
- Used in most well applications and geometries for vertical, horizontal extended reach drilling, close tolerance, or under reamed well conditions.
- Available Size: 4-1/2" to 20"
- (Any special sizes or combination can available on request).

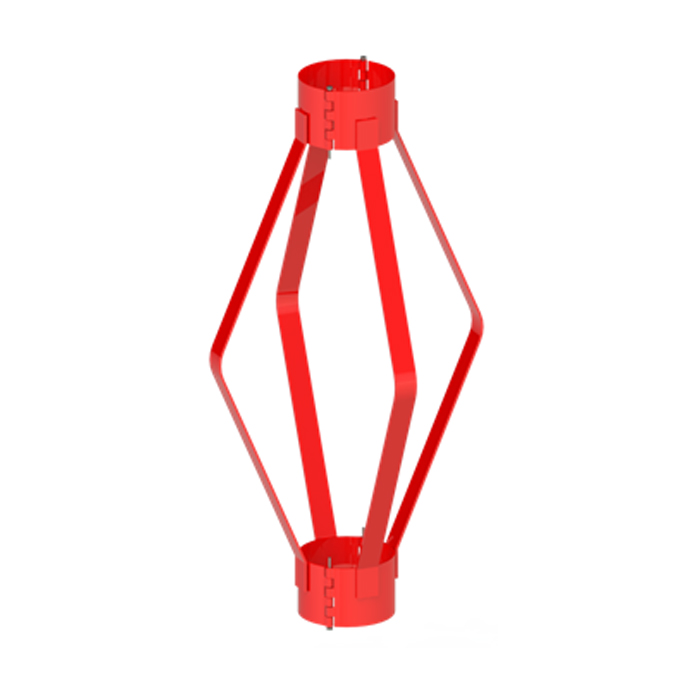

DRILL PIPE CENTRALIZER (VE-06)
These centralizers are designed to give a minimum amount of drag resistance when passing through the previous casing or wellhead and then spring out to fit undreamed sections and washouts.
- Used for oversized holes
- The welded construction provides for superior strength over non-welded centralizers.
- High quality springs steel undergo consistency special heat treatment.
- Hinge installed around the casing O.D.
- Runs freely into difficult well-bores while providing excellent standoff.
Available Size: 4-1/2″ to 7″.
(Any special sizes or combination can available on request).
These are generally shipped in half assembled condition.
DOUBLE BOW SINGLE PIECE CENTRALIZER (VE-08)
- It is all made from one single piece Alloy Steel and hot formed in totally controlled Heart Treatment Plant to achieve the uniform hardness all over and good spring action.
- Retaining more than 90% Stand Off.
- Zero Starting and very good Running Forces.
- Restoring forces up to 3 times greater than API Standard.
- Low friction factor
- Available Size: 4-1/2" to 13-3/8"
- (Any special sizes or combination can available on request)

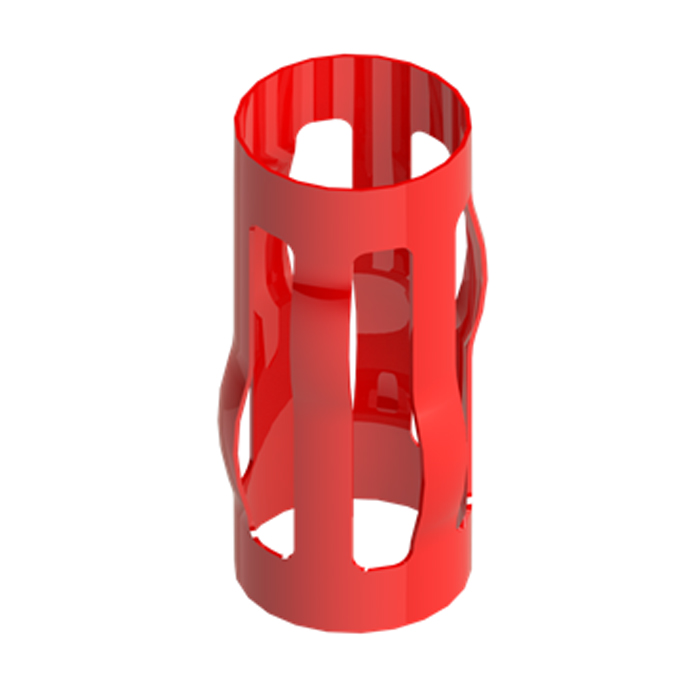

ZIG ZAG SINGLE PIECE CENTRALIZER (VE-10)
- The blades, top and bottom rings are made of one piece to ensure the centralizer’s integrity during the rig operations.
- Non-welded therefore there is no week points, such as hinges, weld etc.
- These centralizers offer high fatigue strength for axial forces and radial side loads on bows during tubular rotation.
- Especially design for under reamed sections where the main consideration is passage through previous set casing and expansion into the open-hole section.
Available Size: 4-1/2″ to 13-3/8“.
(Any special sizes or combination can available on request).
NON WELDED POSITIVE BOW CENTRALIZER (VE-11)
- U-profile bow design permits maximum fluid passage but retaining required rigidity for nearest 100% standoff (concentricity) even in deviated and horizontal wells.
- Self locking action end collar, which helps easy to assemble and strong grip.
- Extended profile bows for prevent them from hitting against casing collars.
Available Size: 4-1/2″ to 20“.
(Any special sizes or combination can available on request).
These are generally shipped in half assembled condition.

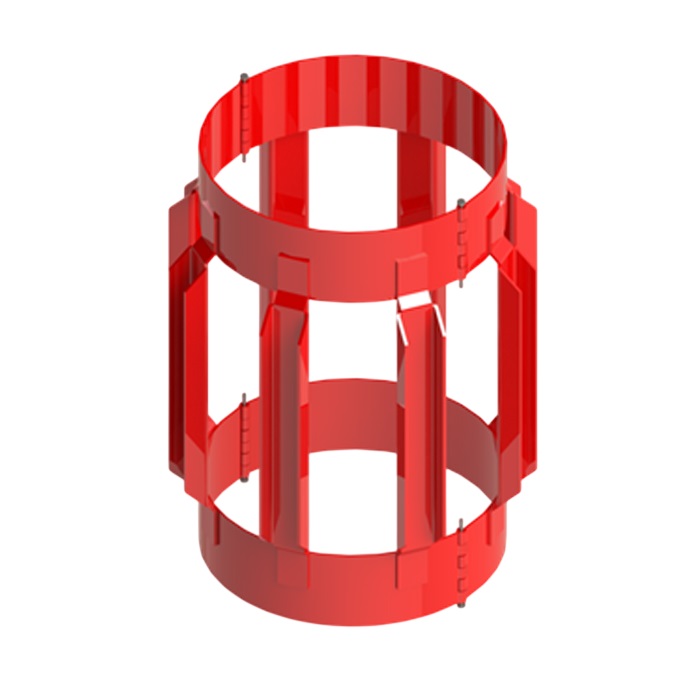

HINGED WELDED POSITIVE BOW CENTRALIZER (VE-12)
- Centralizers bow have strongly welded to the End Collar under required temperature and condition with extra low Hydrogen coated Electrodes
- Operational and general design features are the same as Non Welded Positive Bow Centralizer.
Available Size: 4-1/2″ to 20“.
(Any special sizes or combination can available on request).
These are generally shipped in half assembled condition.

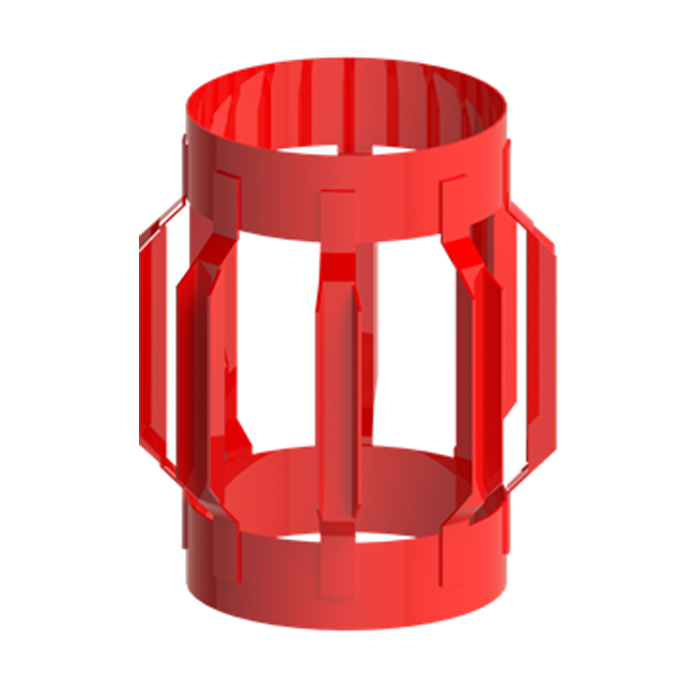

SLIP ON WELDED POSITIVE BOW CENTRALIZER (VE-13)
- Slip-on Positive Bow Centralizer are manufactured with solid end rings that can be easily slipped on the casing OD during installation.
- Centralizers bow have strongly welded to the End Collar under required temperature and condition with extra low Hydrogen coated Electrodes.
- Operational and general design features are the same as Hinged Welded Positive Bow Centralizer.
Available Size: 4-1/2″ to 20“.
(Any special sizes or combination can available on request).
These are generally shipped in half assembled condition.

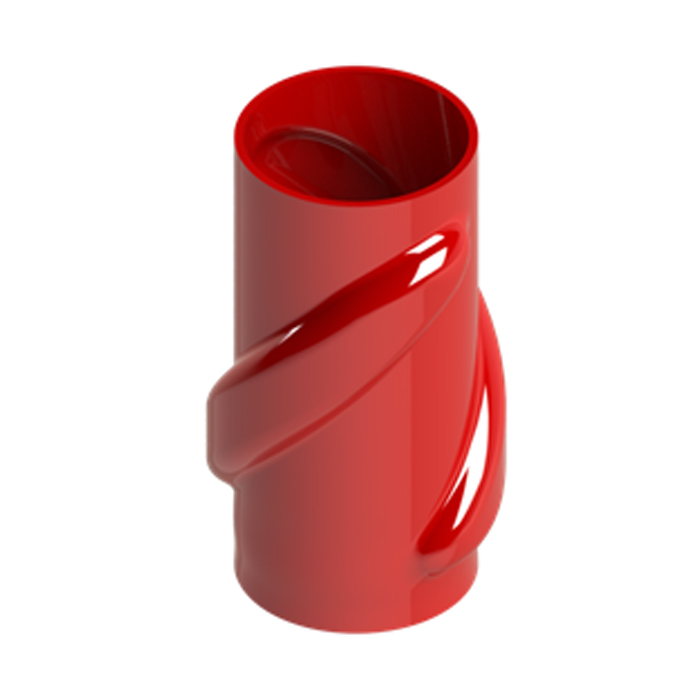

HYDROFORM CENTRALIZER (VE-15)
- Vishal’s introduce new rigid centralizer named Hydroform Centralizer. This centralizer made from seamless pipe by sing hydroforming technology.
- High quality, High Strength Product.
- Provide positive center positioning for cementing in horizontal and highly deviated wells.
- Unique design blade enhances circulation, hole cleaning and cementing
Available Size: 4-1/2″ to 13-3/8“.
(Any special sizes or combination can available on request).

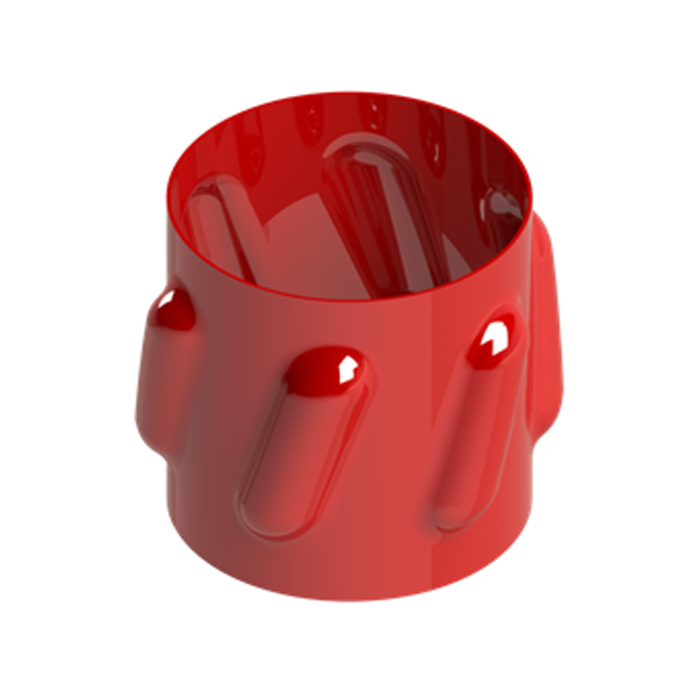

SLIP ON HOLLOW VANE CENTRALIZER (VE-16B)
- Designed for use in vertical & intermediate wells, where positive standoff is required and torque & drag reduction is not an essential requirement.
- These centralizer are often used in liner applications.
- It’s made of one piece high grade steel which ensures extra strength and superior toughness.
- Vanes are formed by embossing on the sleeve.
- Provide positive centralization ensuring cement displaces the drilling mud and forms a good seal.
- Zero starting and running force and Low friction factor.
- Available in Spiral and Straight vane.
Available Size: 4-1/2″ to 13-3/8″.
(Any special sizes or combination can available on request).

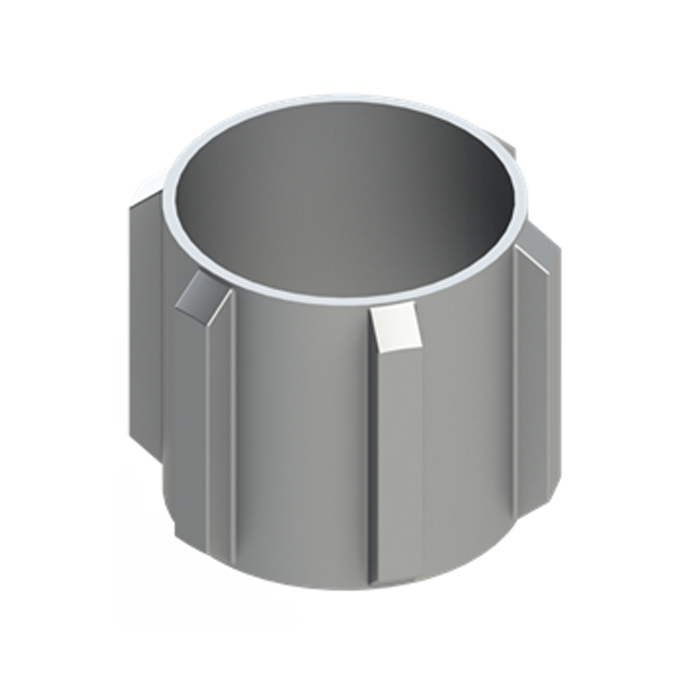

STRAIGHT BLADE SOLID CENTRALIZER (VE-17)
- Available in both 'Short' as well as 'Long' sizes.
- Specially designed with extra length to give maximum centralization.
- Straight Blade Solid Centralizer is constructed of one- piece high strength corrosion resistance Aluminum, Zinc and Solid Steel.
- The innovative solid design ensures a fixed maximum stand-off regardless of lateral loads.
- The Solid Straight Blades are not only self-cleaning going into the wellbore, but the restriction of flow is less than most all other centralizers.
- Designed for use in highly deviated and horizontal wells and act as bearing during pipe rotations.
Available Size: 3-1/2″ to 13-3/8″.
(Any special sizes or combination can available on request).

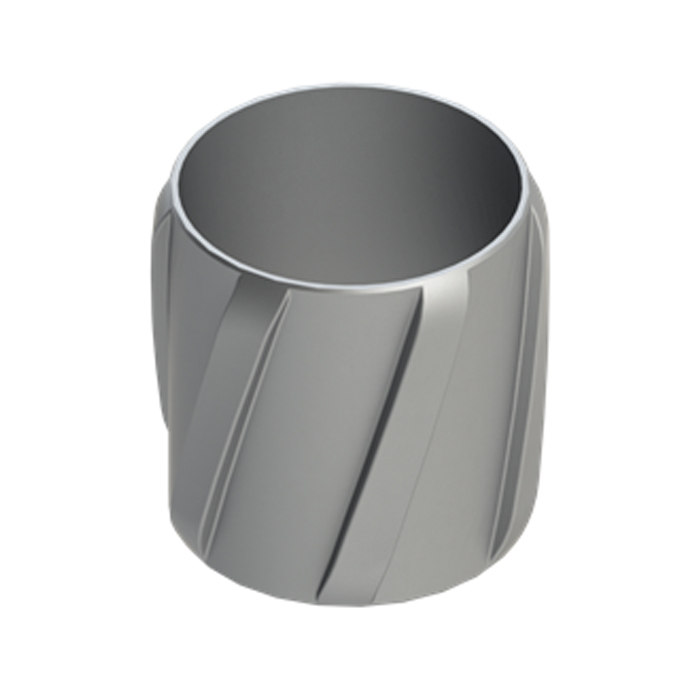

SPIRAL BLADE SOLID CENTRALIZER (VE-18)
- Available in both 'Short' as well as 'Long' sizes.
- Specially designed with extra length to give maximum centralization.
- Spiral Blade Solid Centralizer is constructed of one- piece high strength corrosion resistance Aluminum, Zinc and Solid Steel.
- The innovative solid design ensures a fixed maximum stand-off regardless of lateral loads.
- They are design to provide optimum flow and its spiral
- Blades overlap the entire 360-degree open hole circumference.
- They are not only self-cleaning going into the wellbore, but the restriction of flow is less than most all other centralizers
- Designed for use in highly deviated and horizontal wells and act as bearing during pipe rotations.
Available Size: 4-1/2″ to 13-3/8″.
(Any special sizes or combination can available on request).

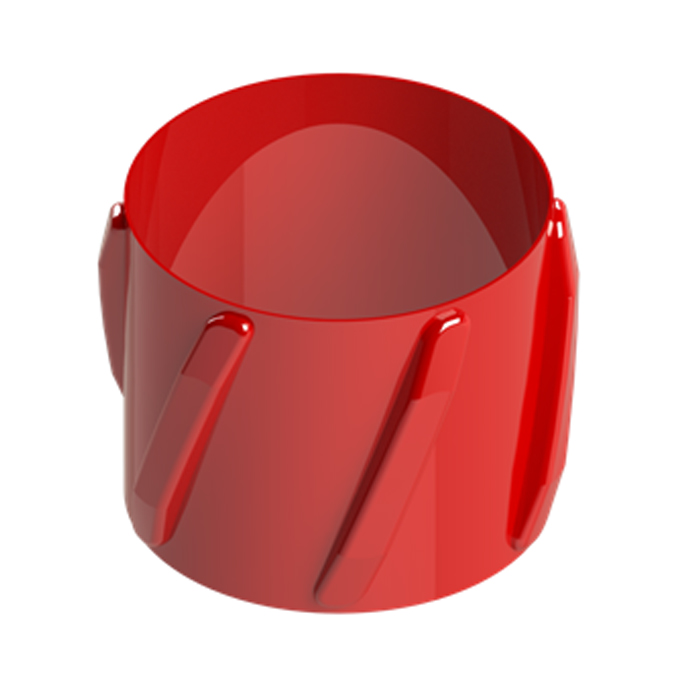

HEAVY DUTY SPIRAGLIDER (VE-19)
- Designed for high deviated horizontal well where casing centralization is the main consideration.
- The SPIRAGLIDER system is made of steel, giving it a toughness advantage over other materials and alloys.
- Its Insured positive standoff, maximum flow, maximum well bore stabilization, maximum holding strength, decreased drag.
- Both spiral and straight fin designs minimize drag forces while running pipe. The fins glide smoothly on the low side of horizontal boreholes.
- Best suitable for use with linger hanger
Available Size: 3-1/2″ to 20″.
(Any special sizes or combination can available on request).

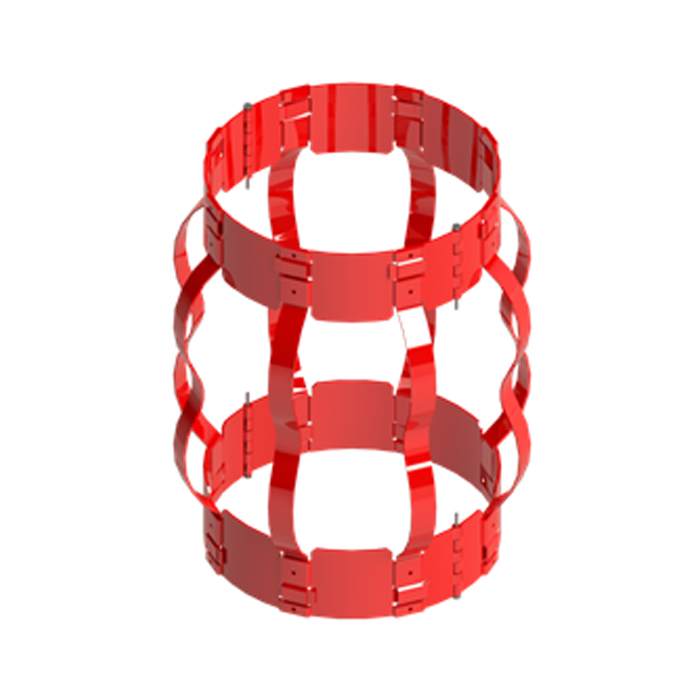

NON WELDED SEMI RIGID BOW CENTRALIZER (VE-20)
- Semi Rigid Bow Centralizers have the ability to withstand high lateral load encountered.
- High efficiency in casing jobs on Deviated and Horizontal wells.
- Combining the features of a standard spring bow and rigid centralizer, it has bows manufactured from alloy steel tempered for exact hardness and a non- weld design to eliminate brittle spots.
- Semi Rigid Centralizers increase contact area for less bow penetration into the formation and helps in complete mud removal while cementing.
Available Size: 4-1/2” to 20”.
(Any special sizes or combination can available on request).
These are generally shipped in half assembled condition for economy in shipping and storage costs.
WELDED SEMI RIGID BOW CENTRALIZER (VE-20A)
- Semi Rigid Bow Centralizers have the ability to withstand high lateral load encountered.
- High efficiency in casing jobs on Deviated and Horizontal wells.
- Combining the features of a standard spring bow and rigid centralizer, it has bows manufactured from alloy steel tempered for exact hardness and a non- weld design to eliminate brittle spots.
- Semi Rigid Centralizers increase contact area for less bow penetration into the formation and helps in complete mud removal while cementing.
- More Restoring force as compare to Non Welded Spring Bow Centralizer.
Available Size: 4-1/2” to 20″.
(Any special sizes or combination can available on request).
These are generally shipped in half assembled condition for economy in shipping and storage costs.
NON WELDED SPRING BOW CENTRALIZER WITH TURBO FINS (VE-21)
- The centralizer consists of straight non-welded bow springs with the rivets turbo fins.
- The fins are made of heat-treated alloy steel.
- The fins direction can be made in both right and left hand versions to assist in the uniform displacement of the cement.
- The turbo fins induce a spiral flow pattern to cement slurry and assists in the removal of mud cake and help reduce channeling during cementing operations.
Available Size: 4-1/2” to 20”.
(Any special sizes or combination can available on request).
These are generally shipped in half assembled condition for economy in shipping and storage costs.

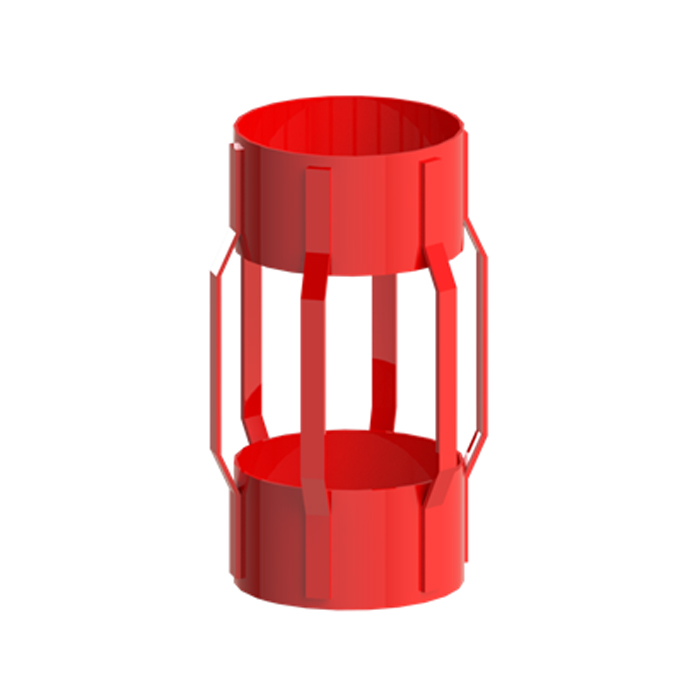

WELDED ROTATING CENTRALIZER (VE-26)
We are highly instrumental in offering a wide and comprehensive range of Welded Rotating Centralizers.
- Designed for meeting the requirements for centralizers that are utilized with a rotating liner in highly deviated conditions.
- High restoring force for optimum standoff.
- Low moving force to minimize drag.
- Allow free rotation of the pipe for maximum displacement efficiency.
- Over stop collar design minimizes moving forces while reciprocating
Available Size: 4-1/2” to 7″.
(Any special sizes or combination can available on request).

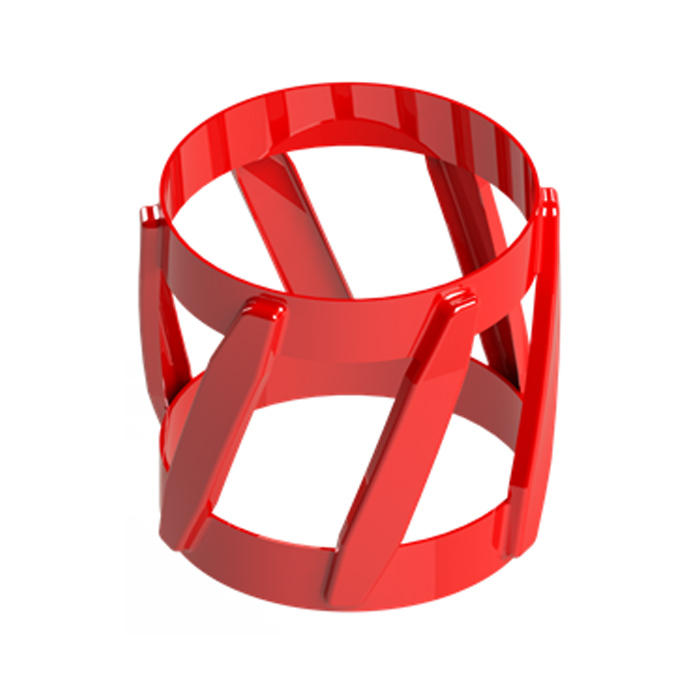

SPIRASLIDER (VE-27)
- Designed especially for highly deviated or horizontal wells.
- The steel construction ensures extra strength and superior toughness.
- Twisted vanes for low friction to reduce drag force while running the pipe.
- Vanes are welded on single piece roll formed collars under controlled conditions for maximum rigidity and minimum distortions.
- Provided for direct installation on the pipe by slipping on and can be provided with compatible Stop Collars beveled from one side positioned by set screw.
Available Size: 4-1/2” to 20”.
(Any special sizes or combination can available on request).
These are generally shipped in half assembled condition for economy in shipping and storage costs.

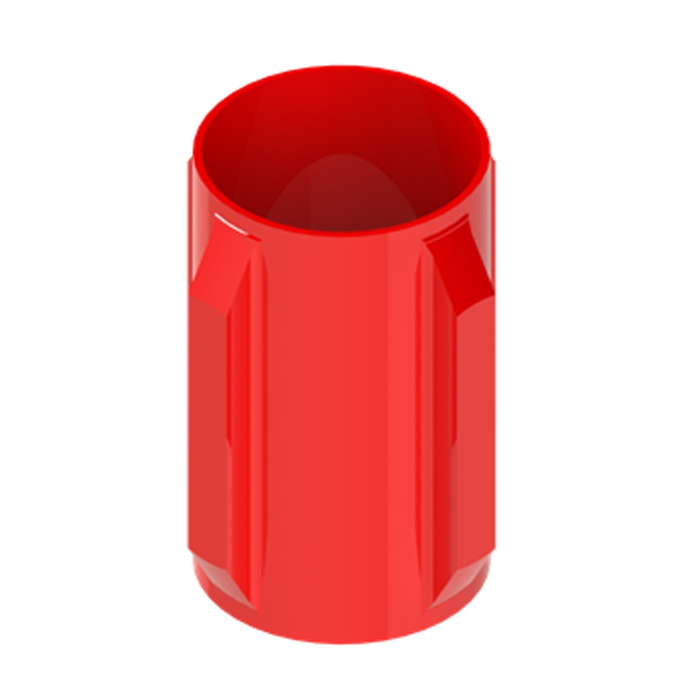

HEAVY DUTY WELDED RIGID VANE SOLID CENTRALIZER (VE-28)
- Designed for high deviated horizontal well where casing centralization is the main consideration.
- The Centralizer system is made of steel, giving it a toughness advantage over other materials and alloys.
- Its Insured positive standoff, maximum flow, maximum well bore stabilization, maximum holding strength, decreased drag.
- Both spiral and straight fin designs minimize drag forces while running pipe. The fins glide smoothly on the low side of horizontal boreholes.
- Best suitable for use with linger hanger
Available Size: 4-1/2” to 7″.
(Any special sizes or combination can available on request).

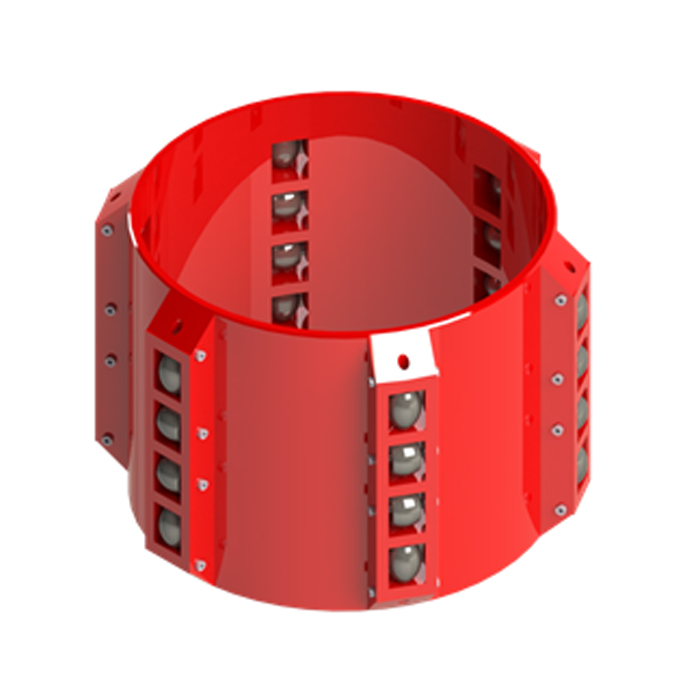

SOLID BODY ROLLER CENTRALIZER (VE-30)
- The primary feature is replacing sliding friction with rolling friction against the borehole wall, which aids in reaching the total depth (TD) in horizontal or highly deviated wells.
- They are solid-body, featuring high-strength steel or wear-resistant materials designed to withstand, and protect the casing from, high impact forces in irregular boreholes.
- The rollers and body design help remove filter cake from the wellbore wall, further enhancing cementing performance.
Available Size: 4-1/2” to 13-3/8”.
(Any special sizes or combination can available on request).

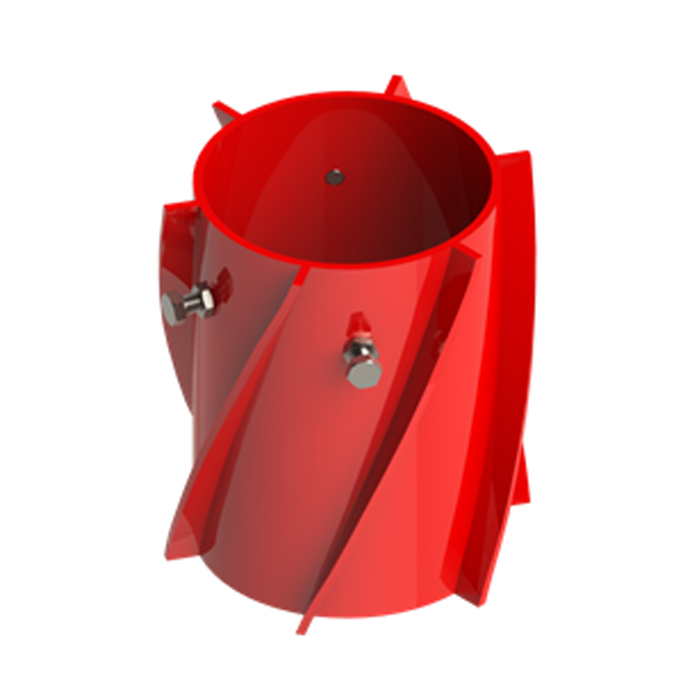

SWIRLER (VE-100)
Welded Spiral Vane Solid Rigid Centralizer Fixed is designed same as Welded Spiral Vane Solid Rigid Centralizer except nut and bolt on the outer periphery of centralizer to restrict rotation. It can be easily converted from fixed to non fixed design by detaching bolts and positioning with stop collars.
Available Size: 4-1/2” to 20″.
(Any special sizes or combination can available on request).

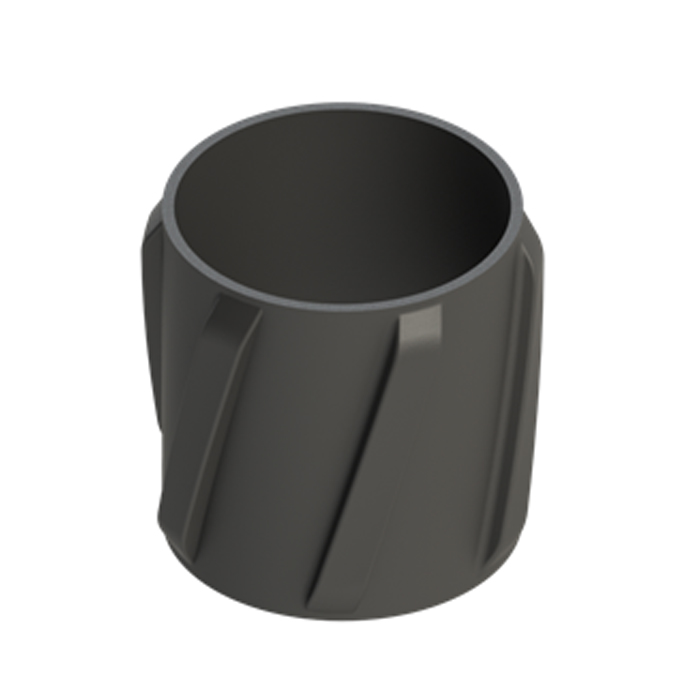

POLYMER CENTRALIZER (VE-76)
Polymer centralizer is based on latest Composite & Polymer Technology that provides high performance in low cost as compare to other metal centralizers.
Advantages
- Low & ultra low friction factors
- Light weight - 5 to 8 times lighter than metal centralizers
- Minimizes drag & reduces torque
- High strength & impact resistance
- High abrasion wear resistance
- Low friction, optimal standoff
- Reduced transport costs
- Chemically stable versus most acids and bases
Available Size: 4-1/2” to 13-3/8”.
(Any special sizes or combination can available on request).
