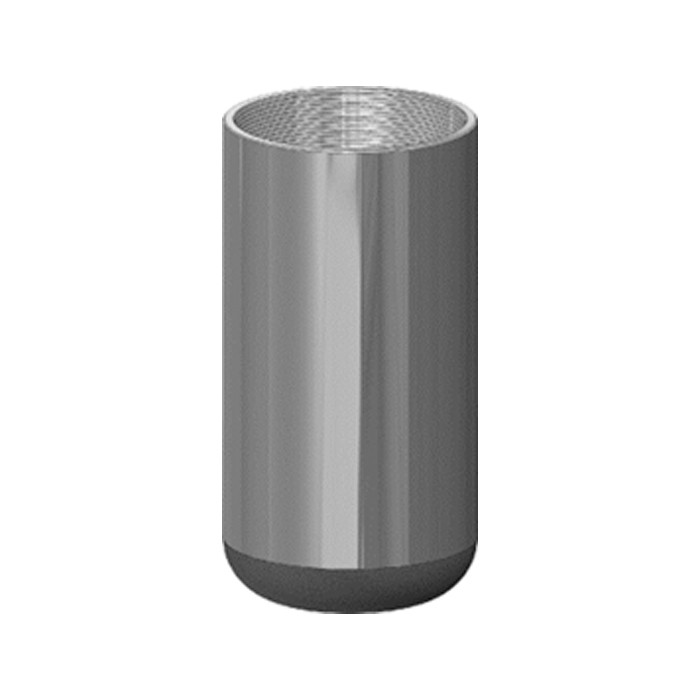

Cement Guide Shoe
Cement Guide Shoe
Description & Features
- Nose Orifice is sufficiently large as to allow conversion balls, tubes, and debris to exist the casing without obstruction.
- Round nose assists running casing in hole.
- Load bearing capability for setting casing on bottom.
Technical Parameter
- Pressure Rating: up to 10,000 psi (maximum).
- Temperature rating: up to 400°F
Material
- L-80, P110, 13% Cr 1 Moly, INCONEL-825, AISI 4140 80/110 KSI
Elastomer
- Nitrile, Viton, HNBR, Aflas
Size
- 3-1/2 in to 20.0 in
| TECH UNIT No. | 032 |
|---|
