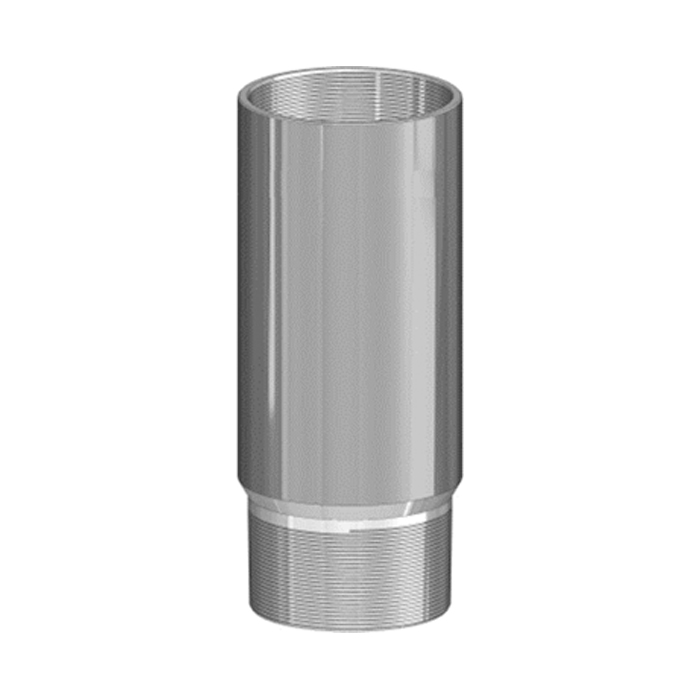

Cement Float Collar
Cement Float Collar
The cement filled Float Collar is fitted with API RP 10F CAT IIIC qualified valve, the collar can be ordered with single, double Valve.
Features
- Fitted with high flow phenolic Float Valve tested in accordance with API RP 10F CAT IIIC test procedures.
- Tightly controlled cementing process for valve installation
- Cement tested for compressive strength & pressure retention
- In-house manufacturing capabilities at global manufacturing facilities
Options
- Standard 5,000 & high pressure 10,000 PSI valves
- Single & double valves available
- Auto-fill option available
- Ball deflector / ball catcher options
Technical Parameter
- Pressure Rating: up to 10,000 psi (maximum).
- Temperature rating: up to 400°F
Material
- L-80, P110, 13% Cr 1 Moly, INCONEL-825, AISI 4140 80/110 KSI
Elastomer
- Nitrile, Viton, HNBR, Aflas
Size
- 3-1/2 in to 20.0 in
| TECH UNIT No. | 030 |
|---|
