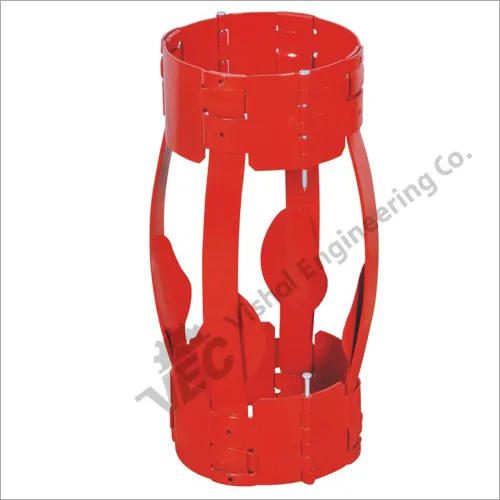

Non Welded Spring Bow Centralizer with Turbo Fins

NON WELD SPRING BOW CENTRALIZER WITH TURBO FINS (VE – 21)

• The centralizer consists of straight non-welded bow springs with the addition of spot welded turbo fins, which are attached with rivets onto the hinged end collars.
• The fins are made of heat-treated alloy steel.
• The fins direction can be made in both right and left hand versions to assist in the uniform displacement of the cement.
• The turbo fins induce a spiral flow pattern to cement slurry and assists in the removal of mud cake and help reduce channeling during cementing operations.

Available Size: 4-1/2" to 20".

(Any special sizes or combination can available on request).

These are generally shipped in half assembled condition for economy in shipping and storage costs.
